258010 FIBERID - Fiber Identifier

Regular price
$569.99
Sale price
$569.99
Regular price
Sold out
Unit price
per

The FIBERID is a valuable and highly effective device to utilize during the installation, troubleshooting, and maintenance of fiber cable systems. It is designed for detecting signals to ensure connections are present in optical fiber systems. This identifier will detect the direction of a signal without the need of accessing the end connection of the optical fiber. It facilitates the troubleshooting process and minimizes interruption of service.

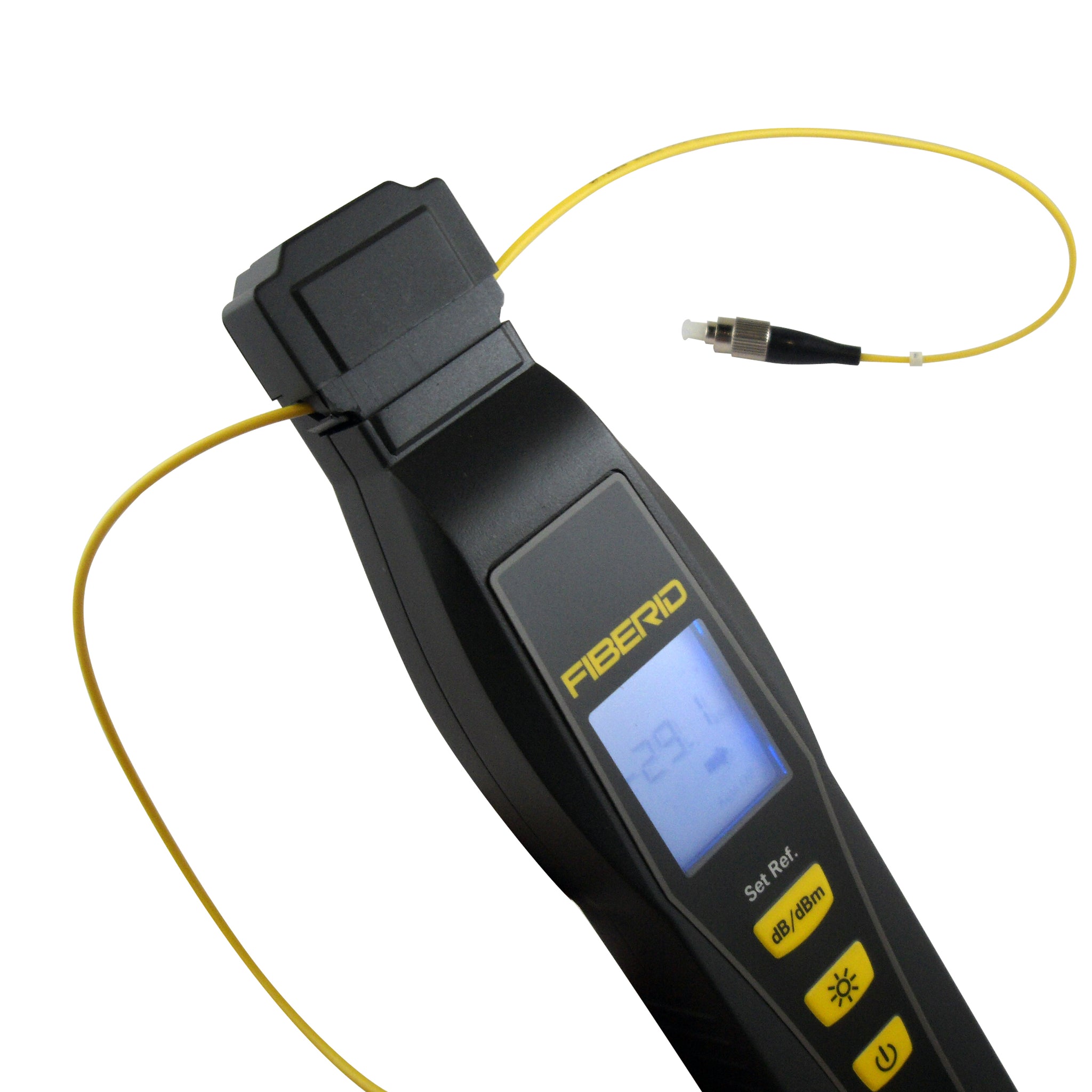

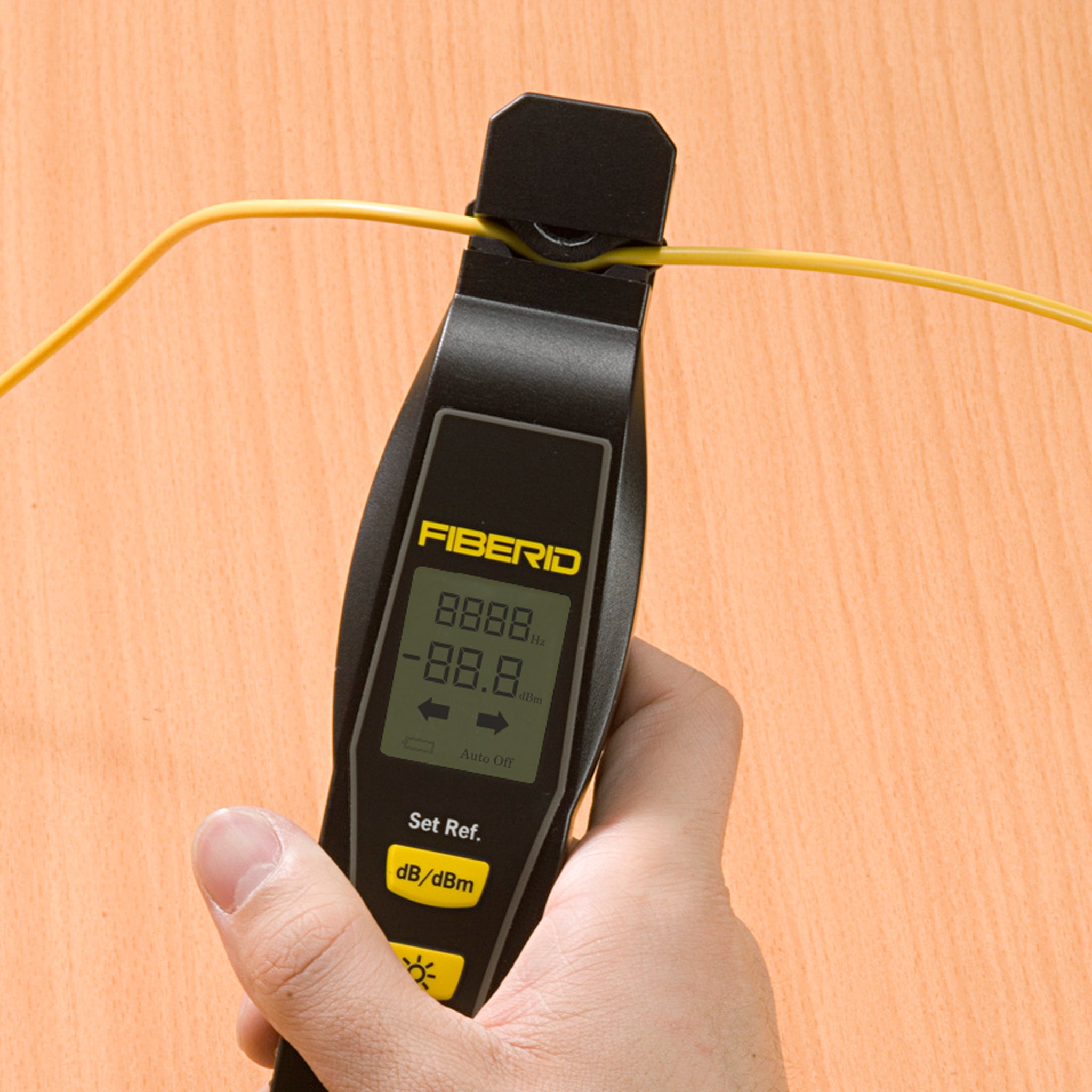

FIBERID simply clamps onto a fiber cable and induces a safe bend allowing a slight leakage of light present on the cable to determine network signal, signal direction, power transmission, and tone recognition. FIBERID is the simplest and safest method for detecting optical signals without splicing, damaging, or interrupting optical signals. It is suitable for both single and multimode cables.

Key Features:

  • High-Efficiency Live Fiber Test Tool
  • Live Fiber Identification & Tracing Tool
  • Power Level Transmission
  • Wavelength: 800 to 1700nm
  • Identification of live fibers or trace fibers
  • Fiber Type: 8 to 10um, 250um, 900um, 2mm, and 3mm
  • Modulated Tone: 270Hz, 1kHz, and 2kHz
  • Power Range (dBm): 20 to –40 (1550nm)
  • Power Measuring Repeatability: ±1dB
  • Insertion loss: <1dB@1310nm, < 2.5dB@1550nm
  • Power Measure Unit: dBm, dB
  • Bidirectional Traffic Detection
  • Continuous Signal Display
  • Backlight LCD Display
  • Low Battery Indicator
  • Storage/Carrying Pouch

 Part# 258010 FIBERID - Fiber Identifier
